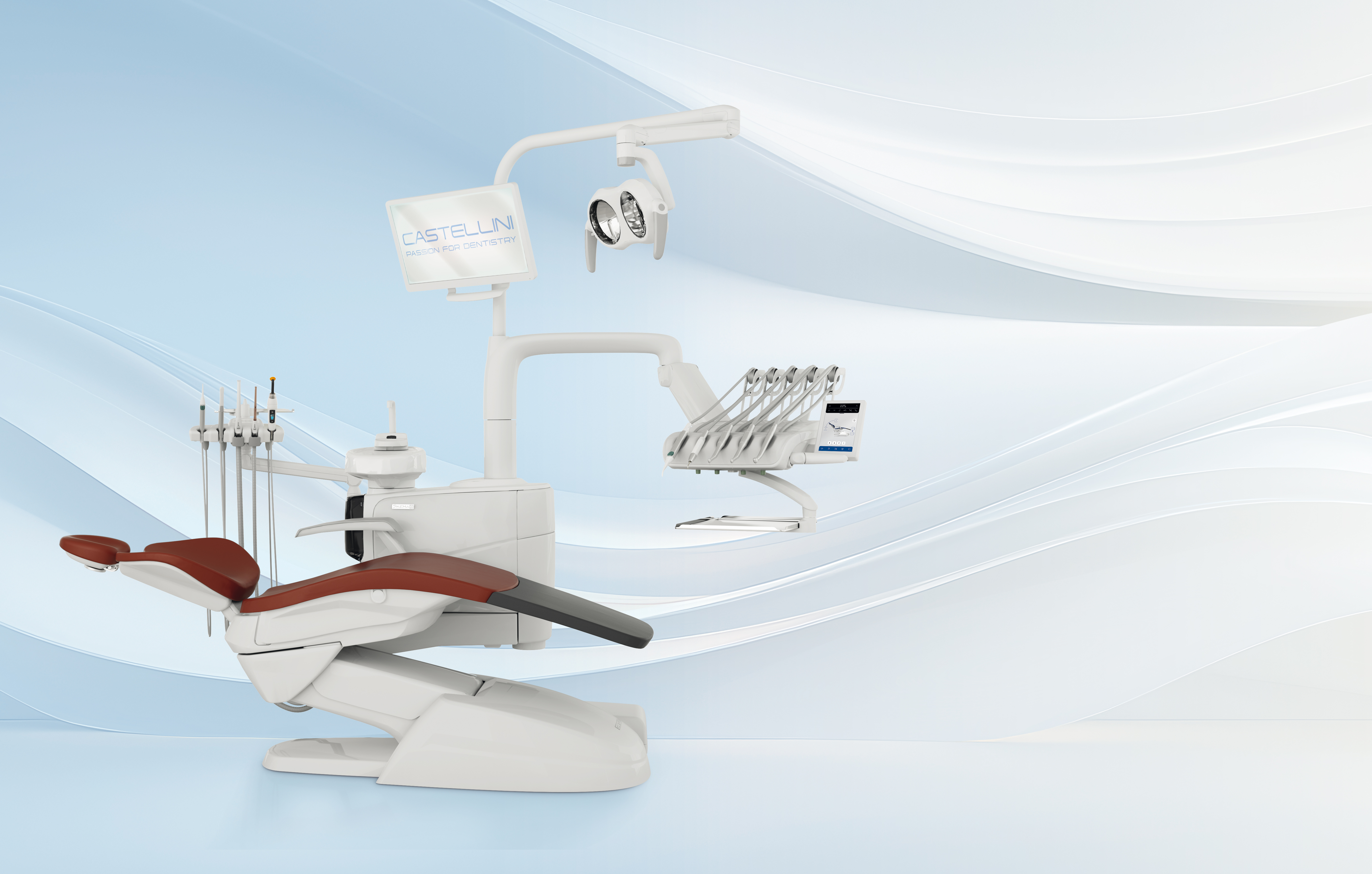

Skema 6
Advanced opportunities
The most advanced integrated clinical features
Skema 6 allows dentists to address any clinical need, even specialist disciplines, knowing that they can rely on cutting-edge technologies and exceptional ease of use. Designed for the most versatile and demanding dentists, Skema 6 features a wide range of configurations that provide maximum operating comfort. Technology and performance for professional evolution.
.png)

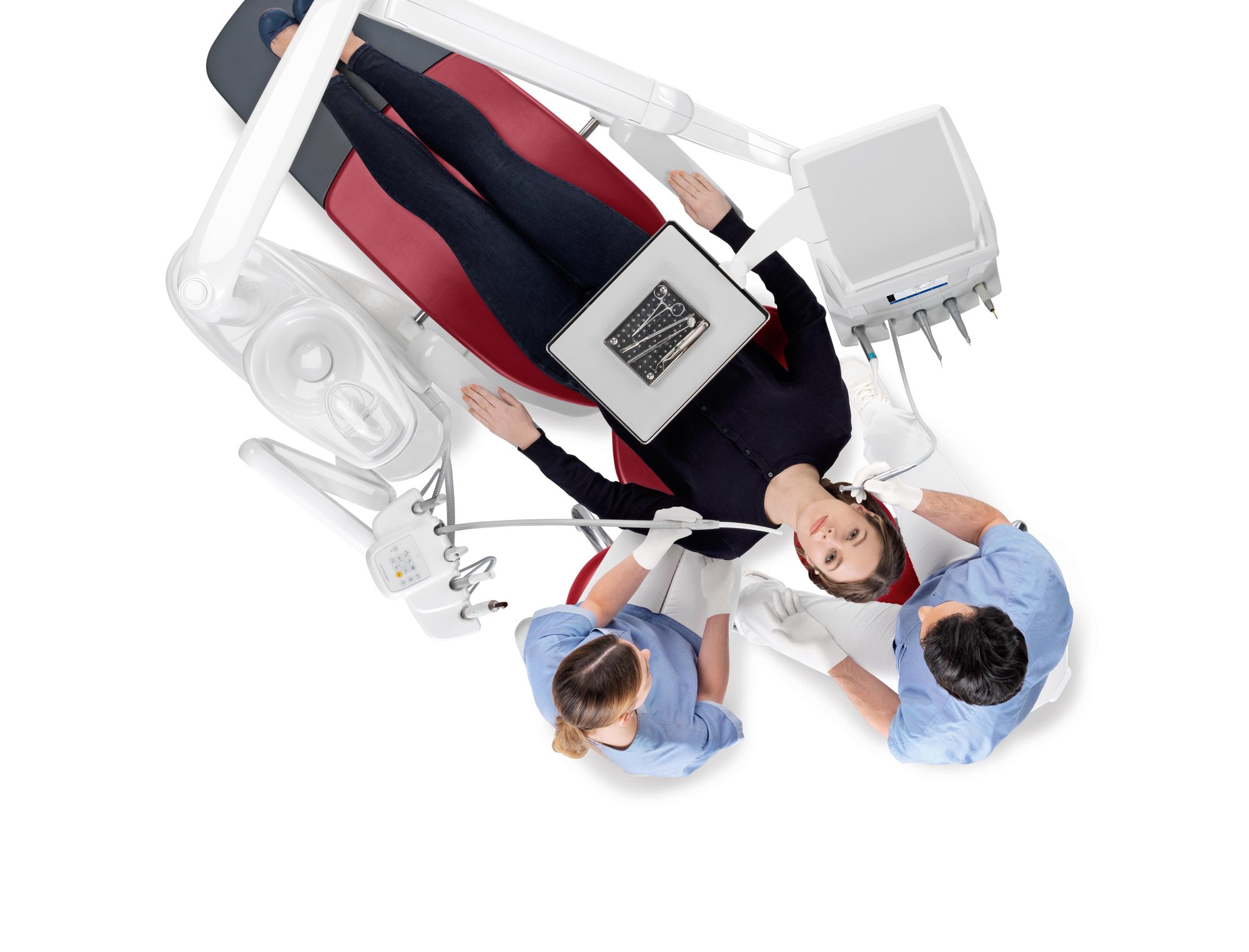

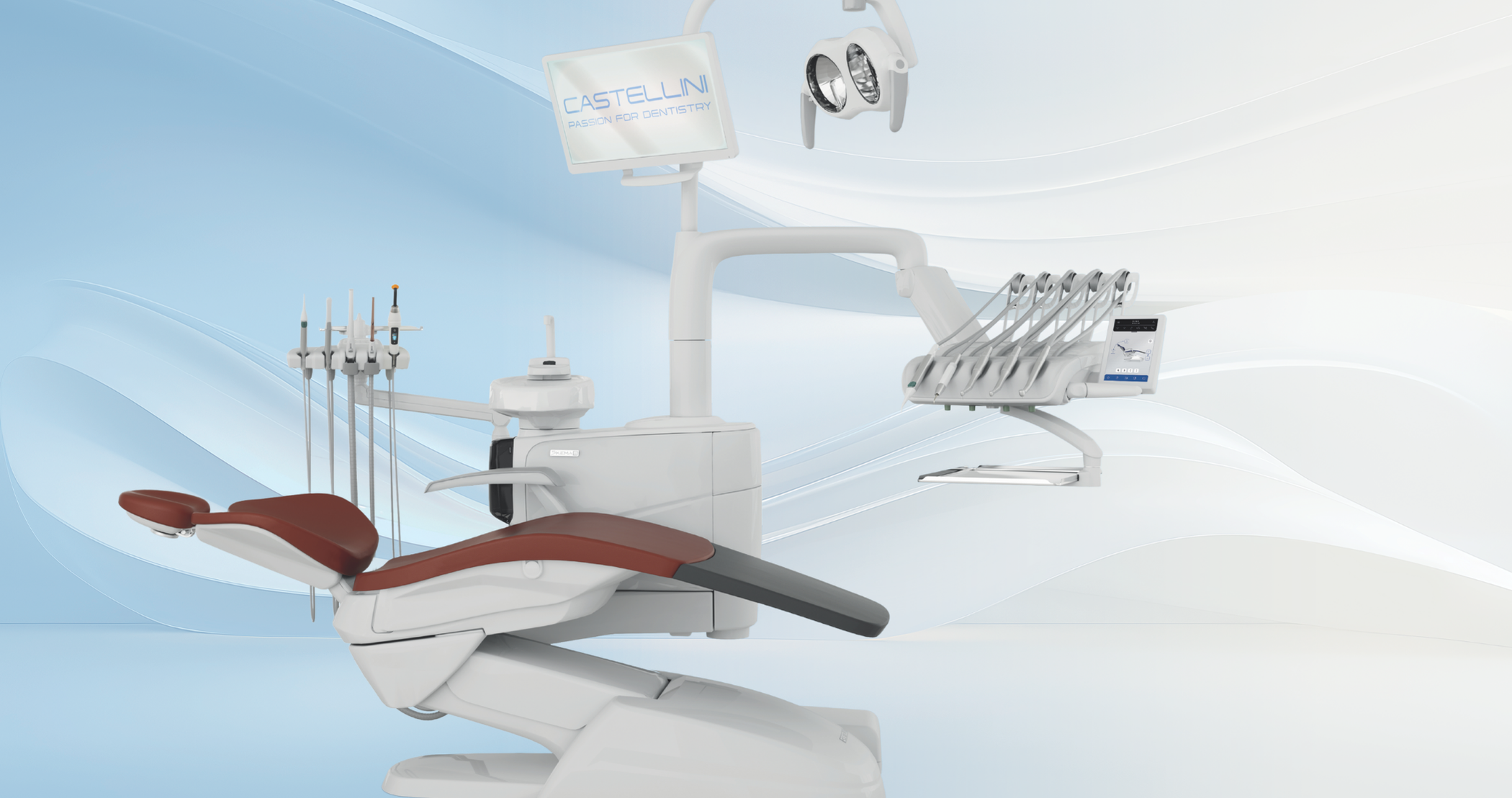

Perfect positioning for any style
The Skema 6 CP model is the primary solution for dentists who prefer instruments with hanging tubes. The new design and mobility of the module, together with the flexible ergonomics of the assistant’s unit, make this model practical and adaptable to every situation. Outstanding ergonomics and design in a single solution.
FULL TOUCH INTERFACE
The Full Touch console with 7” multitouch display ensures user-friendly control of dental unit functions. What’s more, dentists can adjust instrument operating parameters by setting their own preferences and can control/monitor hygiene devices. The integrated software manages endodontic, implantology and conservative functions. Users can also display images, X-rays and video tutorials.
VOICE CONTROLS
Dentists have numerous voice-controlled functions at their disposal. This speeds up workflows and improves hygiene by letting dentists bypass physical contact with the control panel and the integrated accessories. The different instrument modes are voice-activated. It’s also possible to control the operating light and the patient chair by selecting one of the saved positions. Users can also start the timer when performing clinical procedures such as impression-taking.
MULTIPLE CUSTOMISED SET-UPS
NFC TECHNOLOGY

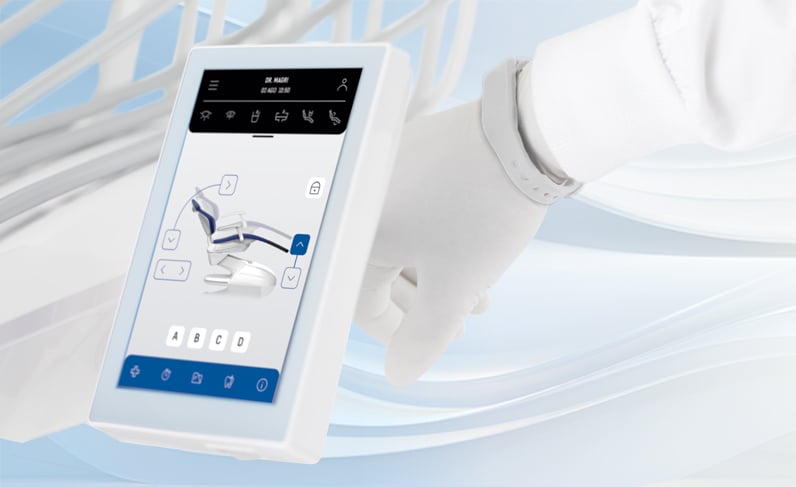

Just tap the bracelet on the NFC symbol on the side of the dentist’s module to connect to the dental unit.
DENTISTS’ PROFILES CAN BE SAVED
PROFILE MANAGEMENT
As-standard management of 4 user profiles allows them to set personalised parameters for the patient chair, cuspidor bowl and instruments, including pre-settings for implant and endodontic procedures.
Built according to the highest technological standards and drawing on Castellini’s 80 years of experience, all instruments, handpieces and accessories are designed to meet every possible dentistry need. Cutting-edge instruments improve every aspect of implant surgery, and conservative and endodontic dentistry.
.jpg)

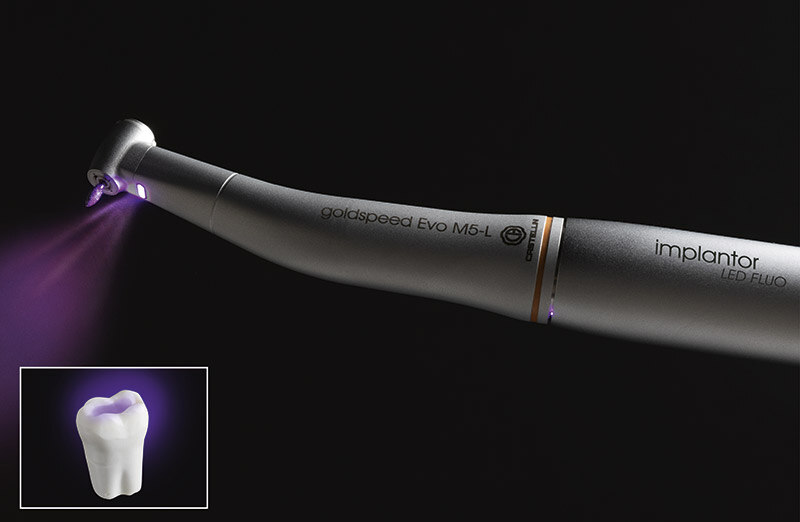

IMPLANTOR LED FLUO
Implantor LED FLUO doesn’t just highlight the composite fillings, differentiating it from the natural structure of the tooth: it also highlights brackets on fixed braces and the invisible attachments used to secure transparent corrective braces.
SYRINGE
Featuring a streamlined and easy-to-handle design, the syringe provides six functions. The handle and tip are autoclavable.
SILENT POWER TURBINES AND GOLDSPEED CONTRA-ANGLES
.jpg)
Castellini offers a complete set of turbines and contra-angles suitable for all fields of dentistry.
PIEZOLIGHT 6 / PIEZOSTERIL 6
Available with LED lighting and fully autoclavable ultrasound handpieces are suitable for prophylaxis, endodontics and periodontal procedures. Ultrasound vibrations are linear and controlled. There are no parasitic lateral vibrations. Constant control and self-adjustment of frequency according to load and the condition of the tip. Irrigation flow can be fine-adjusted via a special dial.
SURGISON 2
Specifically designed for oral surgery, implantology and osteotomy, this handpiece is available with a wide range of accessories for any treatment requirements. Interchangeable with Piezolight 6 and compatible with Piezosteril 6, subject to tubing replacement, the Surgison 2 handpiece is automatically detected and piloted by the dental unit at all times. Completely autoclavable, it provides optional irrigation with sterile fluids for complete asepsis of the operating area.

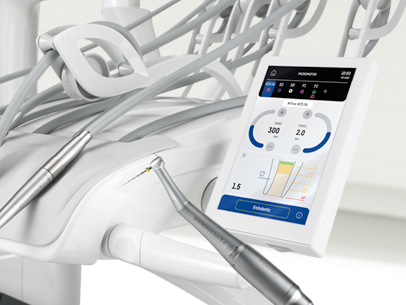

Skema 6 features a comprehensive set of instruments, software and functions designed for endodontics and all related treatment. Dentists have access to an extensive bur database and a specific contra-angle. They can also precision-control the operating parameters that are essential to treatment. Perfect control of the specialist functions and 360° integration of the endodontic system ensure excellent workflows and positive treatment outcomes.
RECIPROCATING MODE
Together with the EVO E4 contra-angle, the control mode with alternating rotation allows for the use of RECIPROC®, RECIPROC BLUE® and WAVEONE GOLD® reciprocating files. The endodontic file brand names are not owned by Cefla or any of its subsidiaries.
DATABASE
For all traditional endodontic procedures, the control panel is able to automatically set optimum parameters thanks to an inbuilt database of the most common endocanalar files.
LAEC - INTEGRATED APEX LOCATOR
The device helps the dentist locate the root apex via an audio-visual indicator. Combined with the EVO E4 contra-angle, it also integrates the APEX-STOP function which automatically switches the file off upon reaching a set safety threshold.

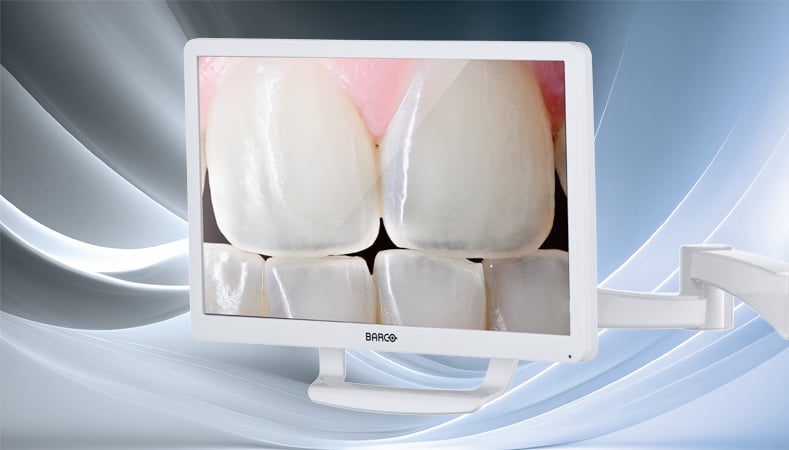

In addition to its user-friendly interface, Skema 6 features a practical yet stylish control panel. While both versions feature a 7” capacitive multi-touch display, dentists are free to select either the Clinic model or the Multimedia model, which provides additional multimedia features. The technologically advanced control panel provides greater scope for the personalisation of programmes, instruments and displayed data.
.jpg)

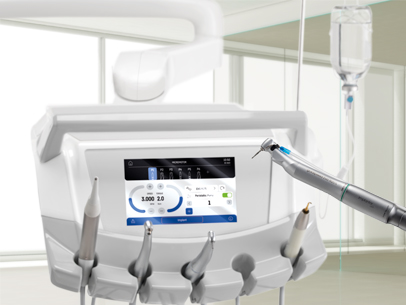

PERISTALTIC PUMP
Integrated on the dentist’s module, the pump can easily be controlled via the control panel. It irrigates the operating field with a sterile saline solution for optimal asepsis.
OPERATING PARAMETERS
The display shows only the information relevant to the clinical needs of the moment: all working parameters can be saved with ease at the touch of a finger, thereby leaving the dentist free to focus on the operation and the patient.
TORQUE CURVES
The dentist can use the integrated function to record torque curves during treatment. Documentation will also be produced in an exportable form after the treatment session to provide a log of the delivered torque and the implant tightening torque.

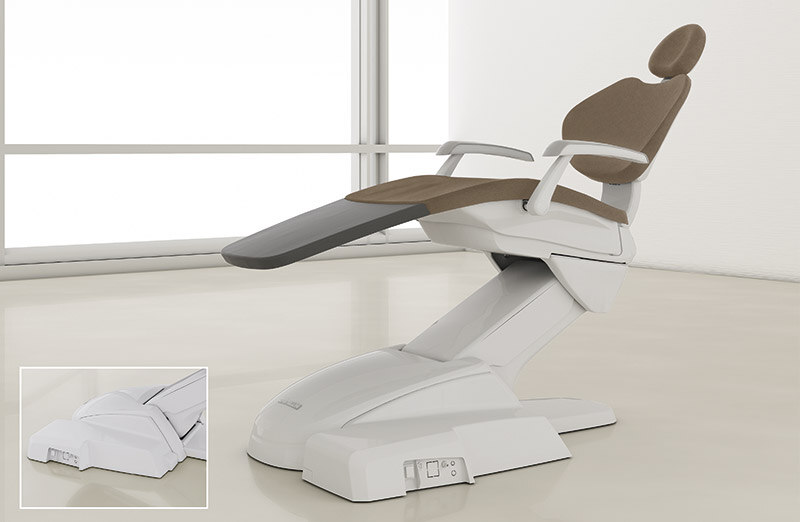

The very heart of the practice, the patient chair offers plenty of scope for customisation and a selection of foot controls, with both wired and wireless versions available. Designed to maximise comfort, the patient chair can incorporate a patient presence sensor. This allows activation of stand-by mode when the patient leaves, thus limiting energy consumption. Where the Di.V.A. virtual assistant is in use, the sensor transmits statistical data to monitor effective dental unit usage. The chair also integrates an automatism that switches the operating light on/off as a function of patient presence.
CHOOSE COMFORT
Optimal seat and backrest design boost patient chair comfort. The backrest features a hard-wearing framework and soft padding with strong, easy-to-clean upholstery. Chair movements are designed to avoid uncomfortable compression in the lumbar area. Castellini has designed a system that gives dentists greater freedom of choice with regard to positioning the dental unit inside the practice and hooking up to existing connections. Depending on the floor outlets and their position, the dental unit can be installed using the connection located directly under the leg rest or the one under the front part of the unit body. The optional Memory Foam padding adapts to patients of any build, ensuring proper anatomical support at all times. This reduces the number of pressure points on the patient’s body, favouring microcirculation and ensuring greater comfort.

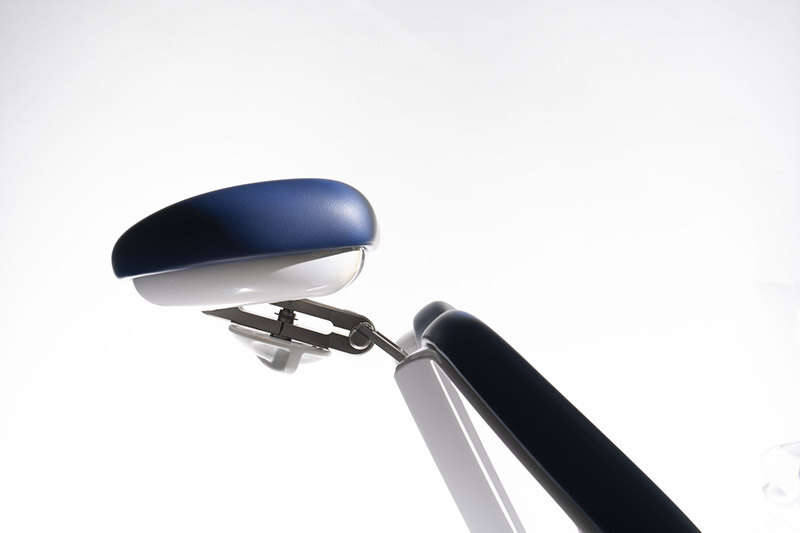

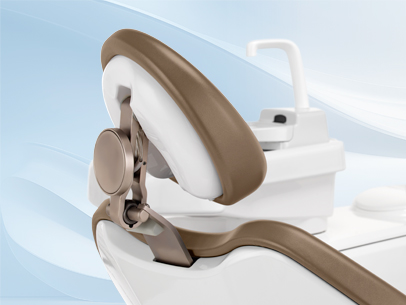

PNEUMATIC HEADREST
The exclusive pneumatic-release orbital headrest, which pivots on three axes and allows for quick, precise assisted positioning, is available as an optional. Movement is activated by the button on the lower side of the headrest.
FOOTREST
.jpg)
The adjustable footrest allows for easy, thorough disinfection.

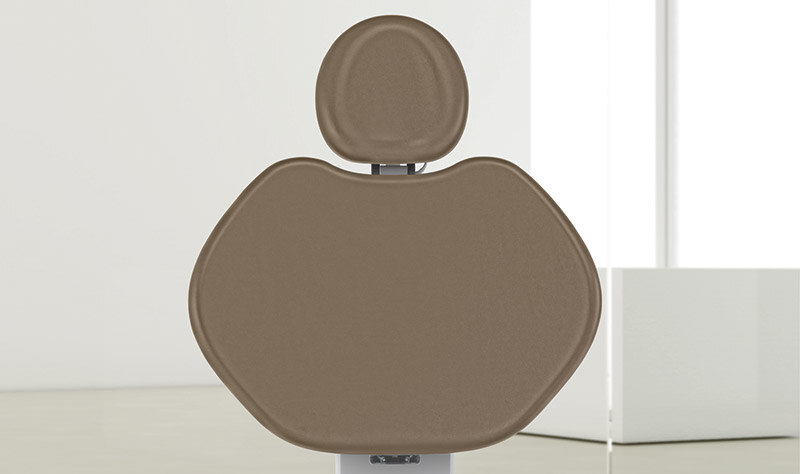

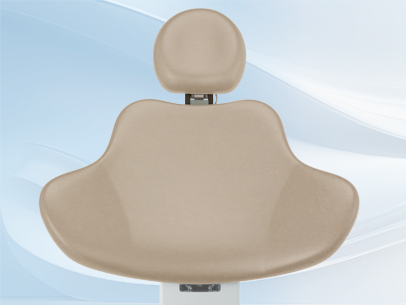

NORDIC BACKREST
.jpg)
A backrest designed for those who want to offer patients sturdy arm and elbow support, allowing excellent access for dentists who work in the 12 o’clock position.
PIEZOLIGHT 6 / PIEZOSTERIL 6
Available with LED lighting, the fully autoclavable ultrasonic handpieces are designed for prophylaxis, endodontics and periodontics. Ultrasonic vibrations are linear and controlled. Absence of parasitic lateral vibrations. Constant control and self-adjustment of frequency according to load and tip condition. Precisely adjustable irrigant flow with special knob.
SURGISON 2
Developed specifically for oral surgery, implantology and osteotomy, it is available with a wide range of accessories for each treatment. Interchangeable with Piezolight 6 and compatible, after cord replacement, with Piezosteril 6, the Surgison 2 handpiece is automatically detected and driven by the dental unit in every situation. Integrally autoclavable, it offers the option of irrigation with sterile fluids for a complete asepsis function of the operating field.
The main advantage of the inbuilt X-ray unit is that it makes diagnostics faster by displaying information and sharing it with the patient in real time. The inbuilt system consists of an X-ray unit with high-frequency generator and wireless remote control, plus an HD digital sensor, IP67 certified. Dentists can use the virtual voice assistant to manage sensor-captured images when the dental unit is connected to the PC.

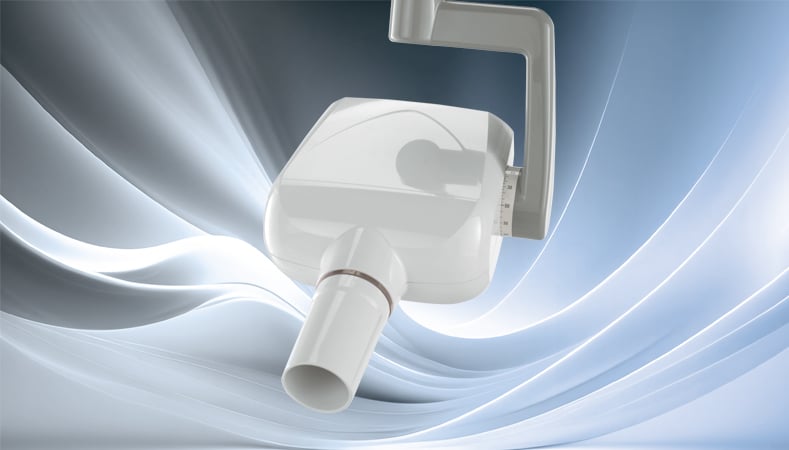

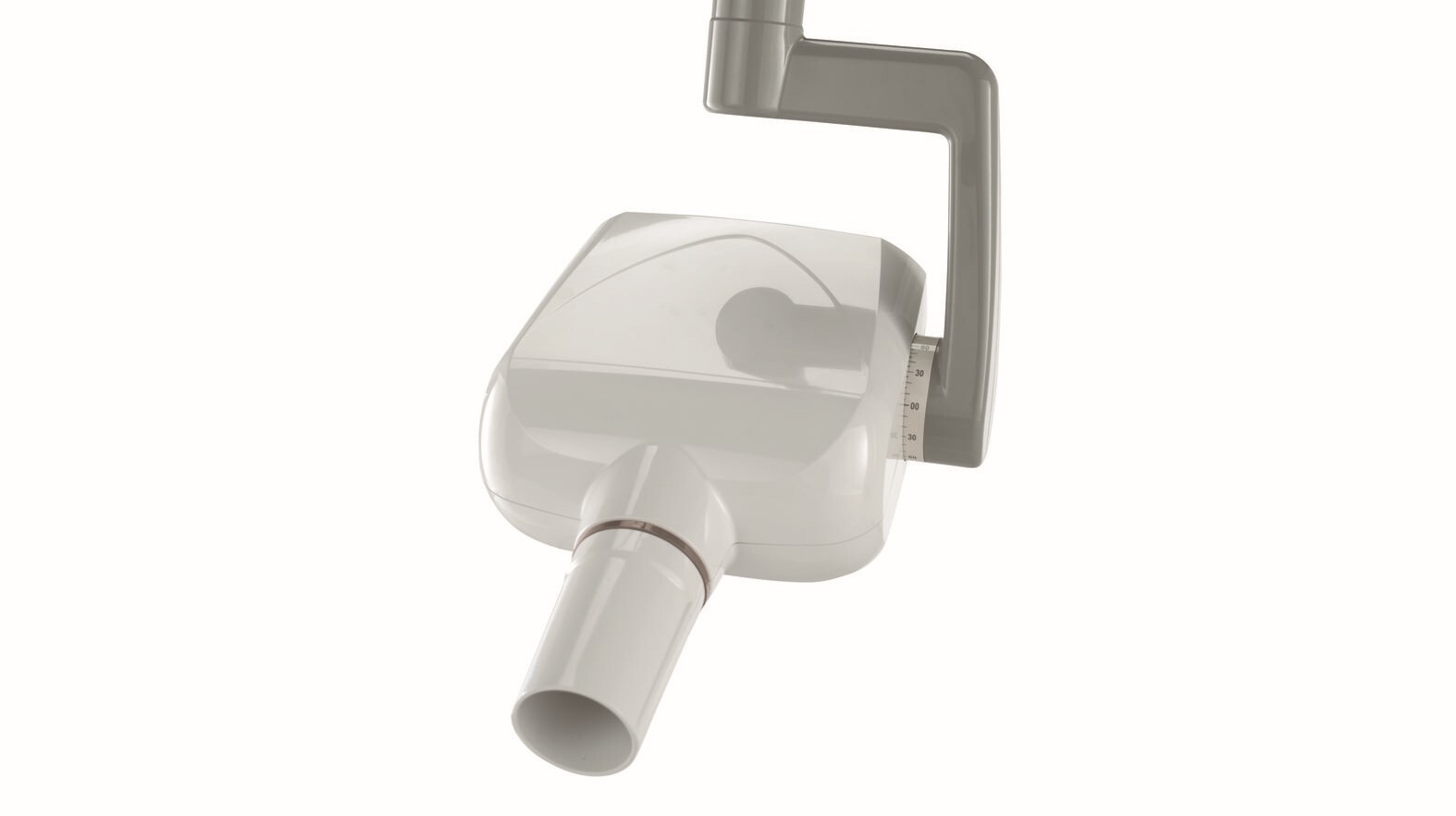

RXDC WITH EXTEND TECHNOLOGY
Thanks to extensive internal collimation and an extremely small focal spot, the X-ray unit provides high-quality images to ensure fast, accurate diagnosis. The integrated Zen-X sensor, available in two sizes, is housed in the dentist’s module, thus speeding up acquisition of intraoral X-ray images. In a matter of seconds, the reprocessed image is displayed on the monitor and, if the Multimedia version is installed, also on the control panel on the dentist’s module.
.jpg)
.jpg)

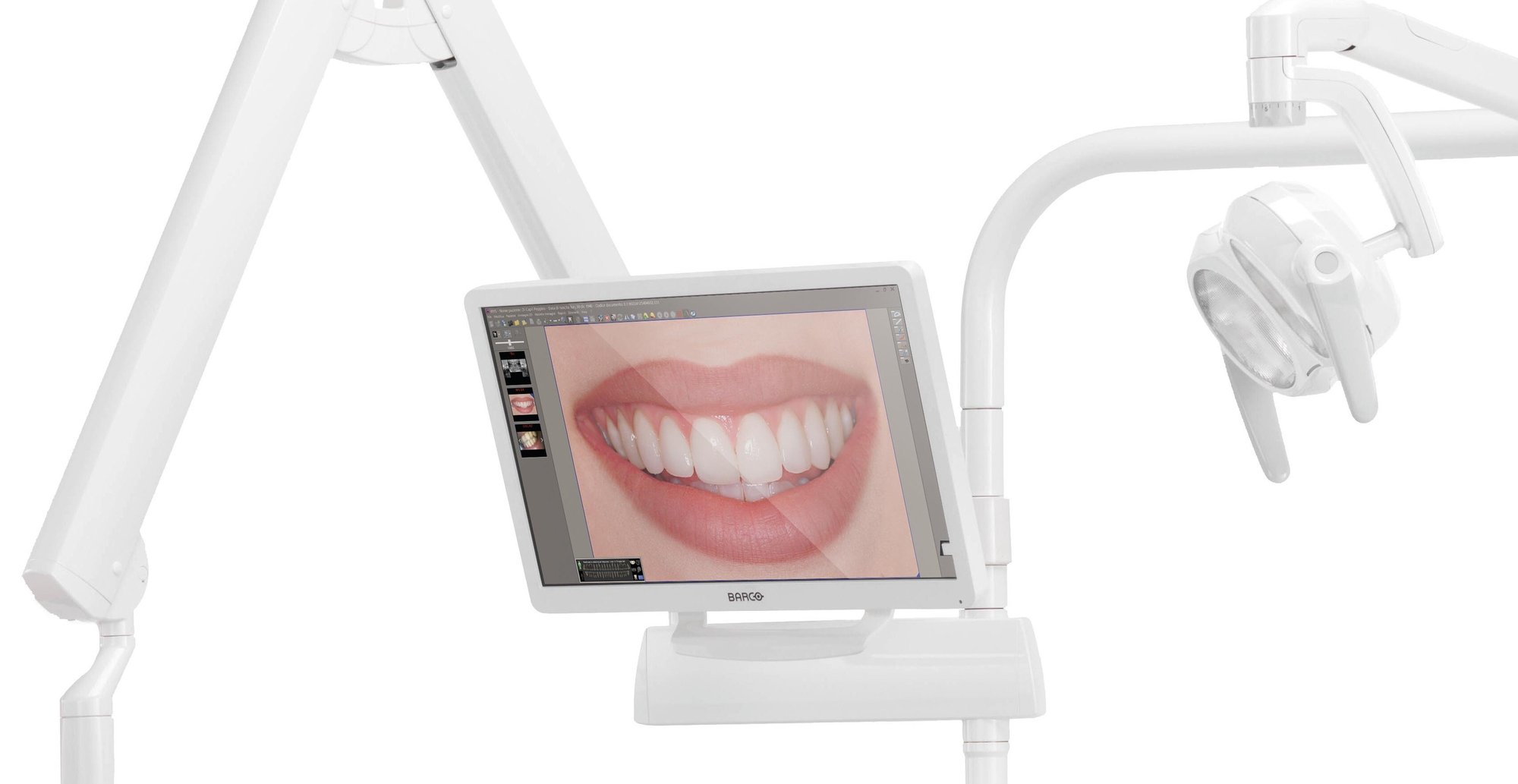

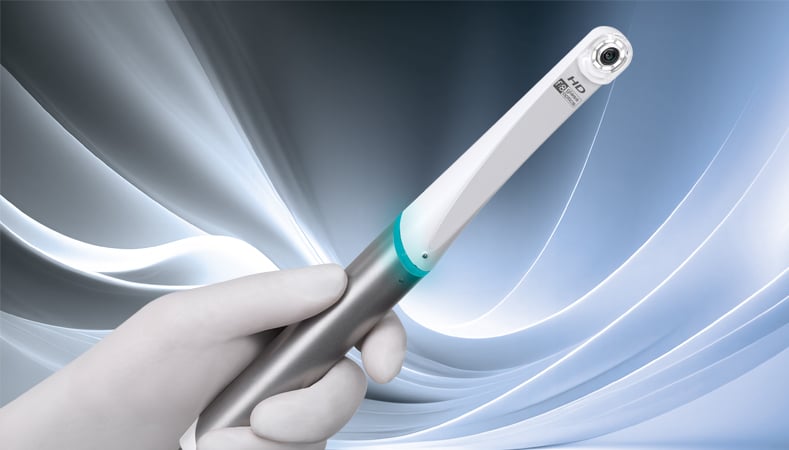

The integrated camera features a streamlined design for a better use inside the oral cavity, and an ergonomic handle. HD-quality images ensure perfect rendering and maximum investigation accuracy.
- Optical system with 7 glass lense sand 16:9 format sensor
- Partially retro flexed 90° viewing angle
- Depth of field from 5 to 70mm
- Freeze-frame activation through the touch-sensitive key
The easy-to-attach and remove Macro Cap accessory magnifies up to 100x to deliver detailed and extremely sharp images.
.jpg)
-1.jpg)

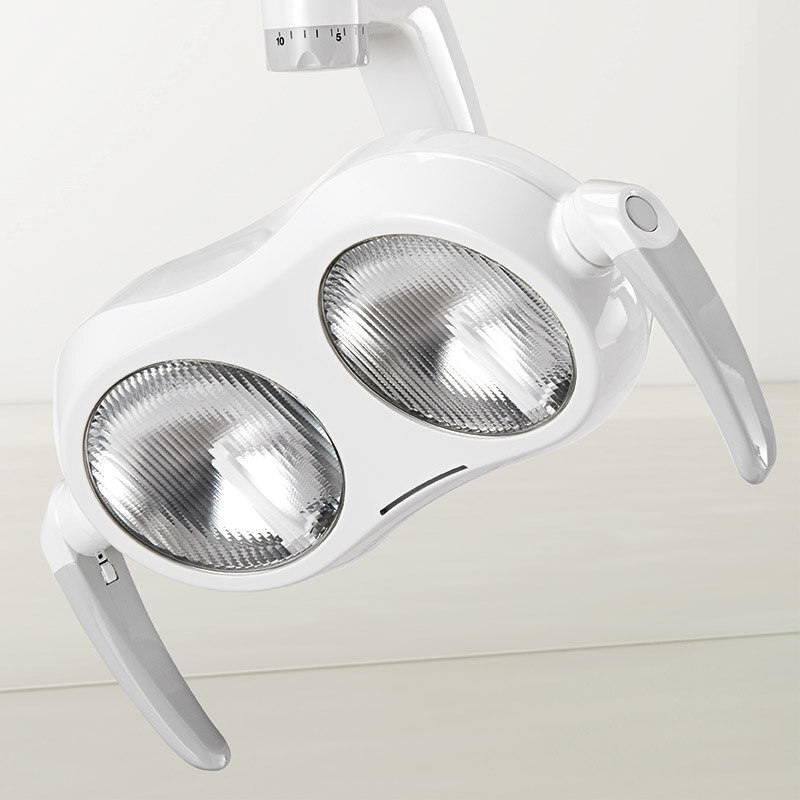

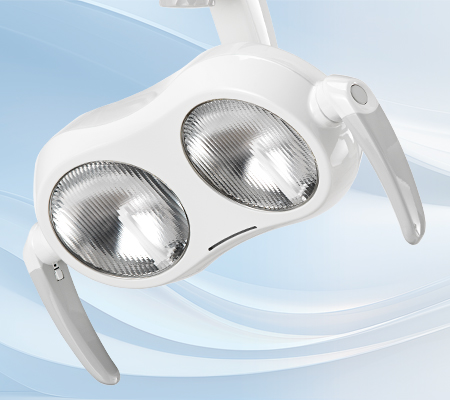

Being able to adjust light intensity and colour temperature are musts if dentists are to operate under perfect lighting conditions at all times. With the new Venus LED MCT lamp the settings are tailored according to circumstances. The lamp rotates on three axes to ensure perfect lighting and prevent any shadows in the operating area. Where the virtual voice assistant is available, the operating light can be voice-controlled (on/off, mode selection).
.jpg)

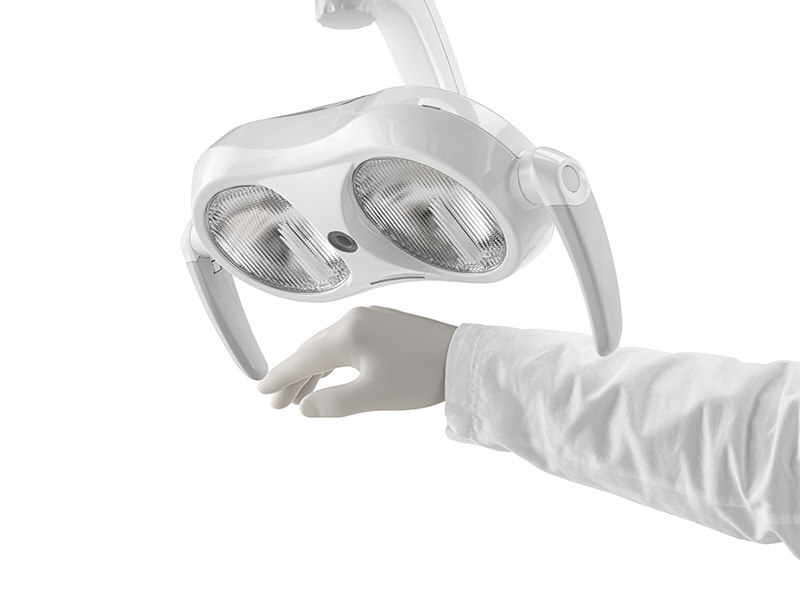

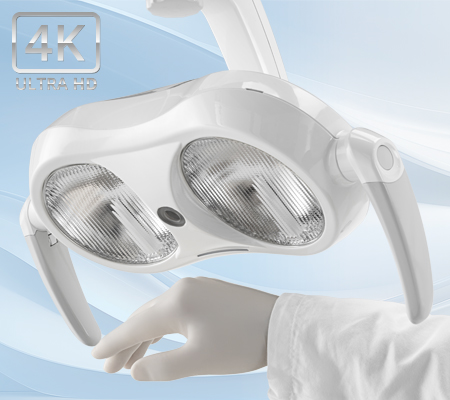

The new Venus LED MCT lamp rotates on three axes to ensure perfect lighting of the operating field in any practice or position. Featuring exceptional brightness, specific values can be set to match clinical needs. The No Touch sensor can switch the lamp on/off and adjust light intensity up to 50,000 Lux. The hermetically sealed front screen is easy to clean, and the handles can be removed and sterilised in an autoclave..
All temperature variations, from warm to neutral or cool and vice versa, can be activated with ease, ensuring a perfect view of the operating area according to the treatment being performed at all times.
Ever since its founding, Castellini has been committed to developing cutting-edge devices to guarantee aseptic conditions on the dental unit. Thanks to close cooperation with the Department for Public Health and Infectious Diseases of the Sapienza University of Rome and the Department for Public Health and Paediatrics of the University of Turin, the hygiene systems now available on Skema 6 have been greatly improved. The result: automatic, easy- to-manage devices and effective defence to provide patients and colleagues with a clinical environment that is safe at all times.
AUTOSTERIL
Skema 6 can be equipped with Autosteril, a high-performance automatic disinfection system for all the spray water circuits. During the cycle, the instruments are placed in an inbuilt receptacle. Used together with Peroxy Ag+, the Autosteril system ensures a mycobactericide, bactericide and anti-Legionella action, certified by the Sapienza University of Rome. Analysis has demonstrated that the disinfection provided is sufficient to “eradicate all tested microbes from the piping of the dental unit, even with higher contamination levels.”
Autosteril helps sanitisation at the end of a day’s session and allows short cycles to be performed via the following steps:
- circuit draining with compressed air;
- addition of 3% H2O2 to the spray water circuits;
- hold time allowed for liquid to work to intensive disinfection results;
- liquid draining with compressed air;
- water flushing (either from mains or distilled).
